Part 24 - Create a cascading Video TPG design for HDMI output

This tutorial details the steps required to create an overlaying video TPG design using Vivado. The video output will be delivered via the HDMI port on the Zedboard. The tutorial covers quite a range of activities and includes the use of numerous languages; TCL, Verilog, System Verilog & shell scripting. TCL will be used extensively to add elements to an existing Block Design and wire them up.

Note: Everywhere there is a text edit command (subl) there will be a wget below it to fast track the process.

The aims of this tutorial are as follows :-

Starting from this point is possible but requires a few pre-requisites.

Vivado 2022.2 & PetaLinux 2021.2 are installed & set-up (ideally in /opt/Xilinx).

The other support applications are installed and set-up; minicom, git, sublime-text & sshpass. See Part 1 for more information.

The (remote) SpaceWire UK Tutorial repository is present on your server at say git@192.168.2.20:swuk_tutorial.git or at say ${HOME}/repos/swuk_tutorial.git.

Note: Only perform the following if not continuing from the previous tutorial.
Example: Setup the remote repository (on the local machine). This is required to perform GIT push commands.
```
steve@Desktop:~$ mkdir ~/repos
steve@Desktop:~$ git clone --mirror https://bitbucket.org/spacewire_firmware/swuk_tutorial.git ~/repos/swuk_tutorial.git
```

The (local) cloned SpaceWire UK Tutorial repository is present, located at say ${HOME}/swuk_tutorial.

Note: Only perform the following if not continuing from the previous tutorial.
Example: Setup the local repository.

1. Clone from the remote repository.
2. Create a new branch and switch to it.
3. Revert to the required previous commit.
4. Set the upstream link.
```
steve@Desktop:~$ git clone ~/repos/swuk_tutorial ~/swuk_tutorial
steve@Desktop:~$ cd ~/swuk_tutorial
steve@Desktop:~/swuk_tutorial$ git switch -c my_master
steve@Desktop:~/swuk_tutorial$ git reset --hard zedboard_video_tpg_vga_v1.0
steve@Desktop:~/swuk_tutorial$ git push -u origin my_master
```

The (global) shell initialisation script is set-up to source the (local) SpaceWire UK Tutorial shell initialisation script.
.bashrc (partial)
1. # SpaceWire UK Tutorial
2. source $HOME/swuk_tutorial/common/other/src/script/swuk_sis

The (global) shell initialisation script has been sourced (so it sources the SWUK local SIS).
```
steve@Desktop:~$ source ~/.bashrc
```

Vivado & Vitis are setup to use the 2022.2 version (due to an end-of-year bug in the Video IP generation of 2021.2). PetaLinux is setup to use the (existing) 2021.2 version (due to later versions not being backwards compatible).

steve@Desktop:~$ swuk_xilinx 2022.2 2021.2

Tools are as follows :-

Vivado @ /opt/Xilinx/Vivado/2022.2/bin/vivado
SDK @ Not available!
Vitis @ /opt/Xilinx/Vitis/2024.2/bin/vitis
PetaLinux-build @ /opt/Xilinx/PetaLinux/2021.2/tool/tools/common/petalinux/bin/petalinux-build

Plugged into the ZedBoard is a FAT32 formatted SD card containing the PetaLinux v14.0 (or higher) boot files (generated in Part 20).

   sd-mmcblk0p1/
   ├── BOOT.BIN
   ├── boot.scr
   ├── image.ub
   ├── database
   └── firmware

The Zedboard boot mode jumpers are configured for SD Card boot.

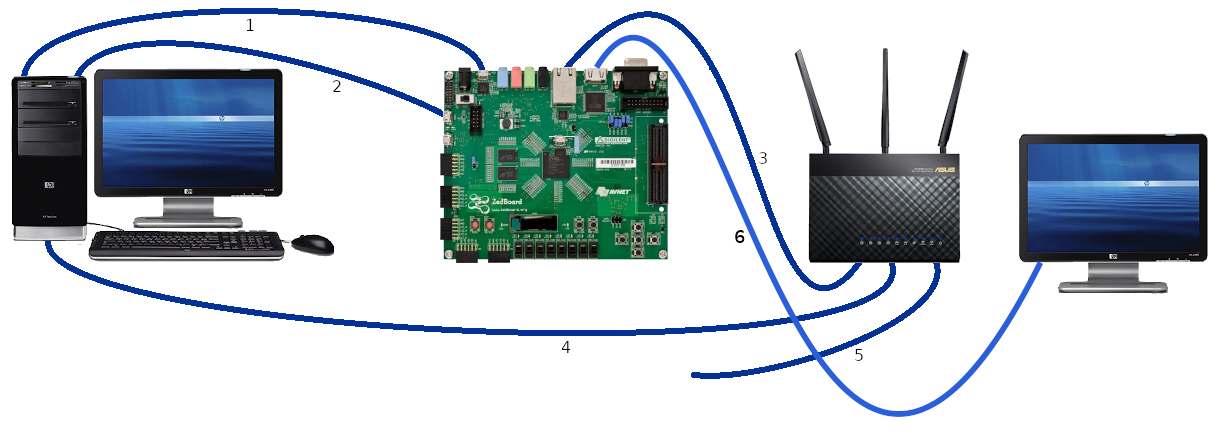

The Zedboard hardware is connected up for comms, internet & HMDI video.

1. Xubuntu PC USB ⇄ Zedboard USB JTAG/Debug.
2. Xubuntu PC USB ⇄ Zedboard USB UART.
3. Zedboard Ethernet ⇄ Router.
4. Xubuntu PC Ethenet ⇄ Router.
5. Router ⇄ Internet.
6. Zedboard ⇄ Monitor (HDMI).

The Zedboard is now powered-up & present on the LAN.

steve@Desktop:~$ ping -c 1 ${swuk_zedboard_ip}
PING 192.168.2.87 (192.168.2.87) 56(84) bytes of data.
64 bytes from 192.168.2.87: icmp_seq=1 ttl=64 time=0.149 ms

--- 192.168.2.87 ping statistics ---
1 packets transmitted, 1 received, 0% packet loss, time 0ms
rtt min/avg/max/mdev = 0.149/0.149/0.149/0.000 ms

The debug terminal emulator is up and running (optional).

steve@Desktop:~$ swuk_terminal

Welcome to minicom 2.7.1

OPTIONS: I18n
Compiled on Dec 23 2019, 02:06:26.
Port /dev/ttyACM0, 06:34:25

Press CTRL-A Z for help on special keys


PetaLinux 2021.2 petalinux /dev/ttyPS0

petalinux login:

Create a brand new baseline project that can be expanded upon to include the new features required.

steve@Desktop:~$ cd ${swuk_tutorial}
steve@Desktop:~/swuk_tutorial$ swuk_create_project zedboard_video_tpg_hdmi --baseline
Enter details for the header blocks...
File .......... zedboard_video_tpg_hdmi
Author ........ Steve Haywood
Company ....... SpaceWire UK
Website ....... http://www.spacewire.co.uk
Project ....... Zedboard Video TPG HDMI
Tutorial ...... SpaceWire UK Tutorial
Date .......... 9 Feb 2026
Version ....... 1.0
Creating project directory structure...
Creating baseline project...
steve@Desktop:~/swuk_tutorial$ cd zedboard_video_tpg_hdmi
steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ swuk_create_vivado_project
steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ cd ..

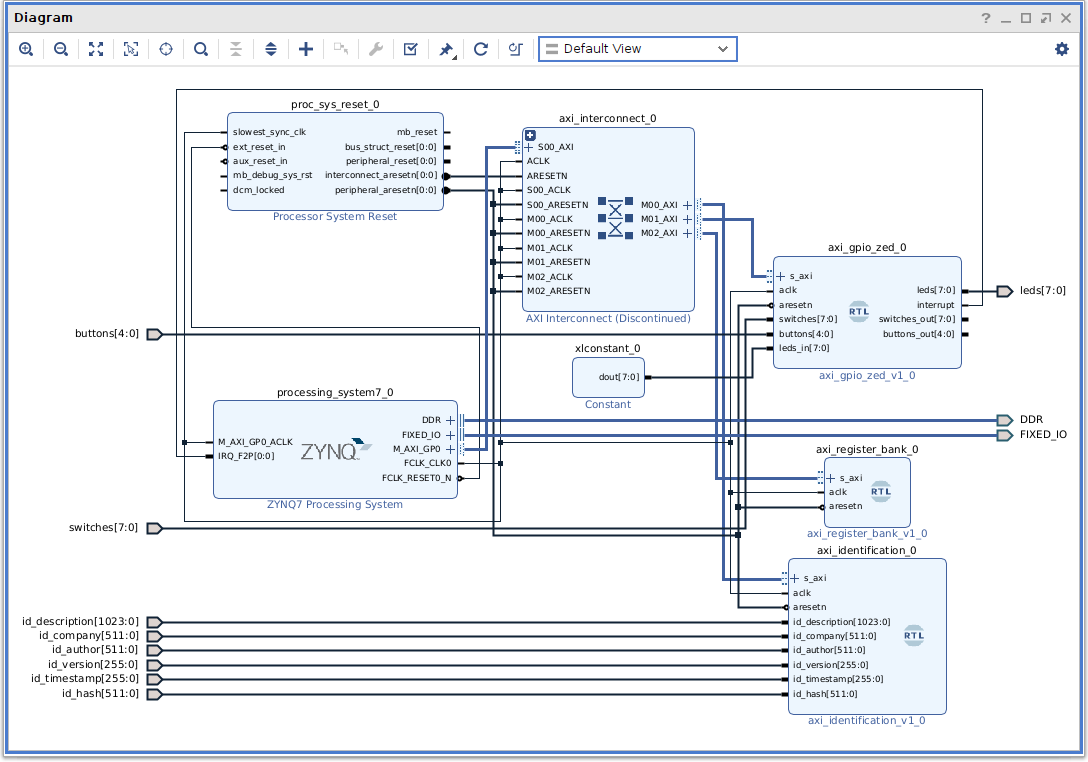

Take a peek at the baseline block design by clicking on Open Block Design under IP INTEGRATOR. Get a better view of the Block Design by clicking on its Float Missing Image!

icon. Resize the canvas to obtain a better view of the design and click on the Regenerate Layout Missing Image!

icon to obtain a better layout. Missing Image!

Instead of poking around on the Block Design a TCL script will be used to make the changes required. The commands used in the script are simply the ones Vivado displays in the Tcl Console when things are changed in the GUI.

If it is more desirable to edit the Block Design manually then use the comments in the script to assist with the process.

Changes required to existing IP & RTL blocks :-

AXI GPIO ZED
AXI Interconnect
ZYNQ7 Processing System

Additional IP & RTL blocks required :-

Clocking Wizard
2x Video Test Pattern Generator
AXI4-Stream Subset Converter
Video Timing Controller
AXI4-Stream to Video Out
Concat
Heartbeat

Create the update script.

steve@Desktop:~/swuk_tutorial$ subl zedboard_video_tpg_hdmi/fw/src/script/user_update_system_bd.tcl

user_update_system_bd.tcl

#
# File .......... user_update_system_bd.tcl
# Author ........ Steve Haywood
# Website ....... http://www.spacewire.co.uk
# Project ....... Zedboard Video TPG HDMI (SpaceWire UK Tutorial)
# Date .......... 20 Dec 2025
# Version ....... 1.0
# Description ...
#   Add & connect up extra blocks on the baseline top-level block design for
# the Zedboard. This script adds the required elements to create a cascading
# video test pattern generator example design with HDMI output.
#


#############################################################################
# Set block design path

set dir_user        "../src"
set dir_diagram     "$dir_user/diagram"


#############################################################################
# Get block design name from script filename (xxx_xxx_yyy_xxx.tcl = yyy)

set whoami [file normalize [info script]]
set fbasename [file rootname [file tail $whoami]]
set parts [split $fbasename "_"]
set bdname [lindex $parts 2]


###################
# Open block design

open_bd_design project.srcs/sources_1/bd/$bdname/$bdname.bd


#######################################
# Adjust existing common design to suit

# - Constant
#   - Remove from BD

delete_bd_objs [get_bd_nets xlconstant_0_dout] [get_bd_cells xlconstant_0]

# - AXI GPIO ZED
#   - Set 'C Leds Mask' to "11000000"

set_property CONFIG.c_leds_mask {"11000000"} [get_bd_cells axi_gpio_zed_0]

# - AXI Interconnect
#   - Set 'Number of Master Interfaces' to 7

set_property CONFIG.NUM_MI {7} [get_bd_cells axi_interconnect_0]

# - ZYNQ7 Processing System
#   - Peripheral I/O Pins
#     - Peripherals
#       - Enable 'I2C 0'
#   - Clock Configuration
#     - PL Fabric Clocks
#       - Set 'FCLK_CLK0' to 162 MHz

set_property CONFIG.PCW_FPGA0_PERIPHERAL_FREQMHZ {162.000000} [get_bd_cells processing_system7_0]
set_property -dict [list \
  CONFIG.PCW_I2C0_PERIPHERAL_ENABLE {1} \
  CONFIG.PCW_QSPI_GRP_SINGLE_SS_ENABLE {1} \
] [get_bd_cells processing_system7_0]


###################################
# Create instances & set properties

# - Clocking Wizard
#   - Clocking Options
#     - Enable 'Dynamic Reconfig'
#     - Set 'Dynamic Reconfig Interface' to AXI4Lite (default)
#   - Output Clocks
#     - Set 'clk_out1' frequency to 148.5 MHz
#   - MMCM Settings
#     - Enable 'Allow Override Mode'

create_bd_cell -type ip -vlnv xilinx.com:ip:clk_wiz:6.0 clk_wiz_0
set_property -dict [list \
  CONFIG.CLKOUT1_JITTER {217.614} \
  CONFIG.CLKOUT1_PHASE_ERROR {245.344} \
  CONFIG.CLKOUT1_REQUESTED_OUT_FREQ {148.5} \
  CONFIG.MMCM_CLKFBOUT_MULT_F {37.125} \
  CONFIG.MMCM_CLKOUT0_DIVIDE_F {6.250} \
  CONFIG.MMCM_DIVCLK_DIVIDE {4} \
  CONFIG.OVERRIDE_MMCM {true} \
  CONFIG.USE_DYN_RECONFIG {true} \
] [get_bd_cells clk_wiz_0]

# - Video Test Pattern Generator 0

create_bd_cell -type ip -vlnv xilinx.com:ip:v_tpg:8.2 v_tpg_0

# - Video Test Pattern Generator 1
#   - Enable 'HAS AXI4S SLAVE'

create_bd_cell -type ip -vlnv xilinx.com:ip:v_tpg:8.2 v_tpg_1
set_property CONFIG.HAS_AXI4S_SLAVE {1} [get_bd_cells v_tpg_1]

# - AXI4-Stream Subset Converter

create_bd_cell -type ip -vlnv xilinx.com:ip:axis_subset_converter:1.1 axis_subset_converter_0

# - Video Timing Controller
#   - Detection/Generation
#     - Disable 'Enable Detection'
#   - Default/Constant
#     - Set 'Video Mode' to 1080p

create_bd_cell -type ip -vlnv xilinx.com:ip:v_tc:6.2 v_tc_0
set_property -dict [list \
  CONFIG.VIDEO_MODE {1080p} \
  CONFIG.enable_detection {false} \
] [get_bd_cells v_tc_0]

# - AXI4-Stream to Video Out
#   - Section: 'Pixels Per Clock'
#     - Set 'Video Format' to 'Manual' & 'YUV 4:2:2'
#   - Section 'Clock Mode'
#     - Set 'Independent'

create_bd_cell -type ip -vlnv xilinx.com:ip:v_axi4s_vid_out:4.0 v_axi4s_vid_out_0
set_property -dict [list \
  CONFIG.C_HAS_ASYNC_CLK {1} \
  CONFIG.C_S_AXIS_VIDEO_FORMAT {0} \
] [get_bd_cells v_axi4s_vid_out_0]

# - Concat
#   - Set 'Number of Ports' to 8

create_bd_cell -type ip -vlnv xilinx.com:ip:xlconcat:2.1 xlconcat_0
set_property CONFIG.NUM_PORTS {8} [get_bd_cells xlconcat_0]

# - Heartbeat
#   - Set 'C Clk Freq' to 148500000

create_bd_cell -type module -reference heartbeat heartbeat_0
set_property CONFIG.c_clk_freq {148500000} [get_bd_cells heartbeat_0]


##############################
# Create interface connections

make_bd_intf_pins_external  [get_bd_intf_pins processing_system7_0/IIC_0]
set_property name IIC_0 [get_bd_intf_ports IIC_0_0]

connect_bd_intf_net -boundary_type upper [get_bd_intf_pins axi_interconnect_0/M03_AXI] [get_bd_intf_pins v_tpg_0/s_axi_CTRL]
connect_bd_intf_net -boundary_type upper [get_bd_intf_pins axi_interconnect_0/M04_AXI] [get_bd_intf_pins v_tpg_1/s_axi_CTRL]
connect_bd_intf_net -boundary_type upper [get_bd_intf_pins axi_interconnect_0/M05_AXI] [get_bd_intf_pins v_tc_0/ctrl]
connect_bd_intf_net -boundary_type upper [get_bd_intf_pins axi_interconnect_0/M06_AXI] [get_bd_intf_pins clk_wiz_0/s_axi_lite]

connect_bd_intf_net [get_bd_intf_pins v_tpg_0/m_axis_video] [get_bd_intf_pins v_tpg_1/s_axis_video]
connect_bd_intf_net [get_bd_intf_pins v_tpg_1/m_axis_video] [get_bd_intf_pins axis_subset_converter_0/S_AXIS]
connect_bd_intf_net [get_bd_intf_pins axis_subset_converter_0/M_AXIS] [get_bd_intf_pins v_axi4s_vid_out_0/video_in]
connect_bd_intf_net [get_bd_intf_pins v_tc_0/vtiming_out] [get_bd_intf_pins v_axi4s_vid_out_0/vtiming_in]


#########################
# Create port connections

make_bd_pins_external  [get_bd_pins clk_wiz_0/clk_in1]
set_property name sys_clock [get_bd_ports clk_in1_0]

make_bd_pins_external [get_bd_pins clk_wiz_0/clk_out1]
set_property name vid_clk [get_bd_ports clk_out1_0]

make_bd_pins_external \
  [get_bd_pins v_axi4s_vid_out_0/vid_active_video] \
  [get_bd_pins v_axi4s_vid_out_0/vid_data] \
  [get_bd_pins v_axi4s_vid_out_0/vid_hsync] \
  [get_bd_pins v_axi4s_vid_out_0/vid_vsync]
set_property name vid_active_video [get_bd_ports vid_active_video_0]
set_property name vid_hsync [get_bd_ports vid_hsync_0]
set_property name vid_vsync [get_bd_ports vid_vsync_0]
set_property name vid_data [get_bd_ports vid_data_0]

connect_bd_net [get_bd_pins heartbeat_0/beat] [get_bd_pins xlconcat_0/In6]
connect_bd_net [get_bd_pins v_axi4s_vid_out_0/locked] [get_bd_pins xlconcat_0/In7]
connect_bd_net [get_bd_pins xlconcat_0/dout] [get_bd_pins axi_gpio_zed_0/leds_in]

connect_bd_net [get_bd_pins processing_system7_0/FCLK_CLK0] \
  [get_bd_pins axi_interconnect_0/M03_ACLK] \
  [get_bd_pins axi_interconnect_0/M04_ACLK] \
  [get_bd_pins axi_interconnect_0/M05_ACLK] \
  [get_bd_pins axi_interconnect_0/M06_ACLK] \
  [get_bd_pins axis_subset_converter_0/aclk] \
  [get_bd_pins clk_wiz_0/s_axi_aclk] \
  [get_bd_pins v_axi4s_vid_out_0/aclk] \
  [get_bd_pins v_tc_0/s_axi_aclk] \
  [get_bd_pins v_tpg_0/ap_clk] \
  [get_bd_pins v_tpg_1/ap_clk]

connect_bd_net [get_bd_pins proc_sys_reset_0/peripheral_aresetn] \
  [get_bd_pins axi_interconnect_0/M03_ARESETN] \
  [get_bd_pins axi_interconnect_0/M04_ARESETN] \
  [get_bd_pins axi_interconnect_0/M05_ARESETN] \
  [get_bd_pins axi_interconnect_0/M06_ARESETN] \
  [get_bd_pins axis_subset_converter_0/aresetn] \
  [get_bd_pins clk_wiz_0/s_axi_aresetn] \
  [get_bd_pins v_axi4s_vid_out_0/aresetn] \
  [get_bd_pins v_tc_0/s_axi_aresetn] \
  [get_bd_pins v_tpg_0/ap_rst_n] \
  [get_bd_pins v_tpg_1/ap_rst_n]

connect_bd_net [get_bd_pins clk_wiz_0/clk_out1] \
  [get_bd_pins heartbeat_0/aclk] \
  [get_bd_pins v_axi4s_vid_out_0/vid_io_out_clk] \
  [get_bd_pins v_tc_0/clk]

connect_bd_net [get_bd_pins clk_wiz_0/locked] [get_bd_pins heartbeat_0/aresetn]

connect_bd_net [get_bd_pins v_axi4s_vid_out_0/vtg_ce] [get_bd_pins v_tc_0/gen_clken]


#########################
# Create address segments

assign_bd_address -offset 0x40030000 -range 0x00010000 -target_address_space [get_bd_addr_spaces processing_system7_0/Data] [get_bd_addr_segs v_tpg_0/s_axi_CTRL/Reg] -force
assign_bd_address -offset 0x40040000 -range 0x00010000 -target_address_space [get_bd_addr_spaces processing_system7_0/Data] [get_bd_addr_segs v_tpg_1/s_axi_CTRL/Reg] -force
assign_bd_address -offset 0x40050000 -range 0x00010000 -target_address_space [get_bd_addr_spaces processing_system7_0/Data] [get_bd_addr_segs v_tc_0/ctrl/Reg] -force
assign_bd_address -offset 0x40060000 -range 0x00010000 -target_address_space [get_bd_addr_spaces processing_system7_0/Data] [get_bd_addr_segs clk_wiz_0/s_axi_lite/Reg] -force


#################################################
# Regenerate, validate, save & close block design

#regenerate_bd_layout
validate_bd_design
save_bd_design
#close_bd_design $bdname

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0030/zedboard_video_tpg_hdmi/fw/src/script/user_update_system_bd.tcl -O zedboard_video_tpg_hdmi/fw/src/script/user_update_system_bd.tcl

Run the script from the Tcl Console.

source ../src/script/user_update_system_bd.tcl

Resize the canvas to obtain a better view of the design and click on the Regenerate Layout Missing Image!

icon to obtain a better layout.

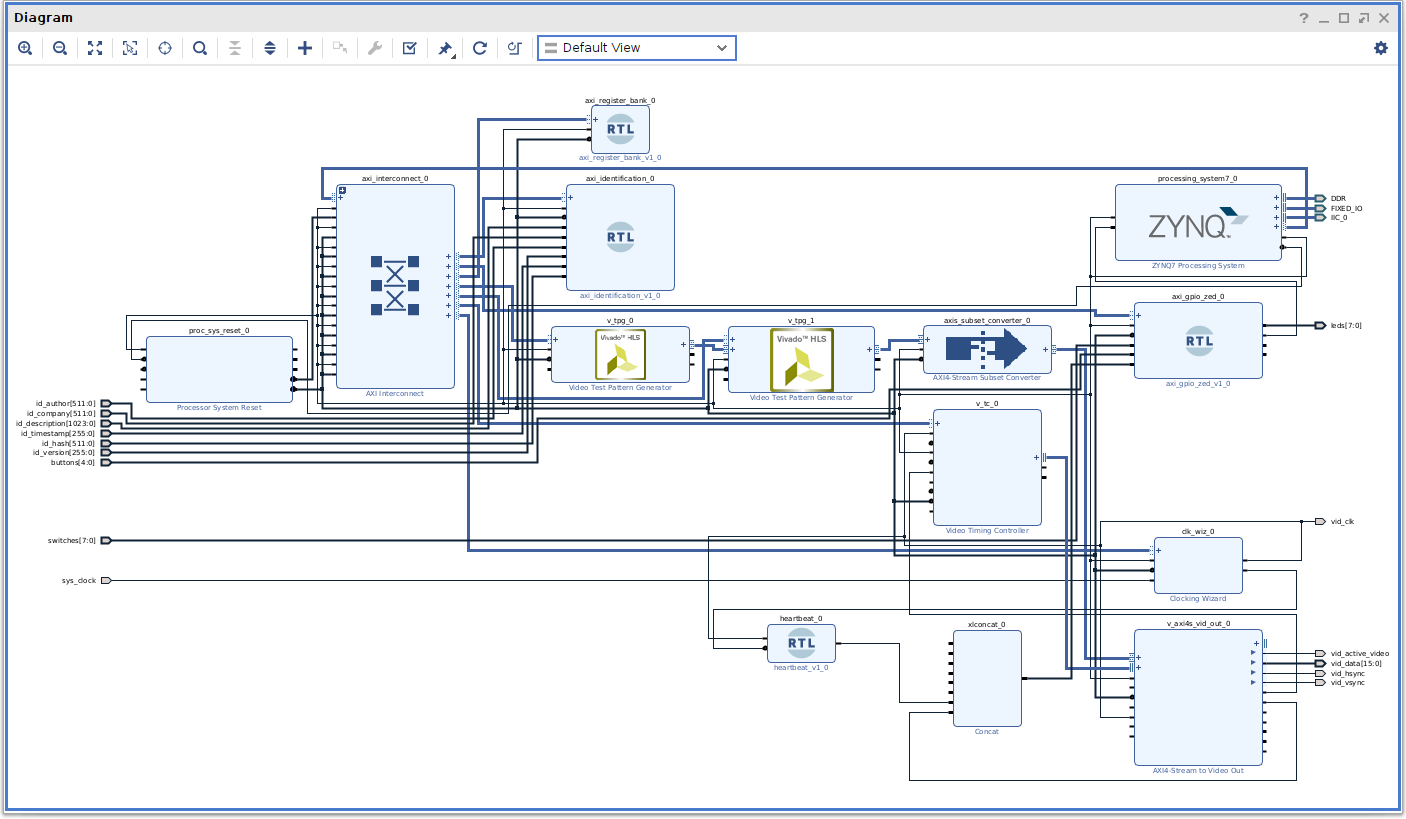

Behold the cascading video test pattern example design. Missing Image!

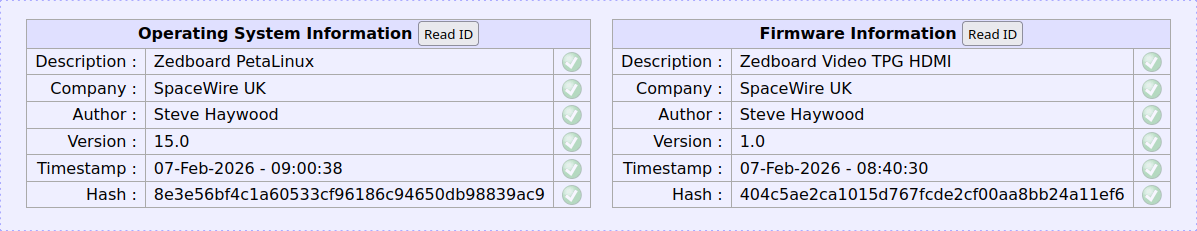

Edit the product identification file.

steve@Desktop:~/swuk_tutorial$ subl zedboard_video_tpg_hdmi/fw/project.txt

project.txt

Zedboard Video TPG HDMI
SpaceWire UK
Steve Haywood
1.0

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0030/zedboard_video_tpg_hdmi/fw/project.txt -O zedboard_video_tpg_hdmi/fw/project.txt

Edit the top-level wrapper for the block design to add the Board Clock, I2C & HDMI Video connections.

steve@Desktop:~/swuk_tutorial$ subl zedboard_video_tpg_hdmi/fw/src/design/zedboard_video_tpg_hdmi.sv

zedboard_video_tpg_hdmi.sv

//
// File .......... zedboard_video_tpg_hdmi.sv
// Author ........ Steve Haywood
// Website ....... http://www.spacewire.co.uk
// Project ....... Zedboard Video TPG HDMI (SpaceWire UK Tutorial)
// Date .......... 20 Dec 2025
// Version ....... 1.0
// Description ...
//   Top level wrapper for the system block design.
//


timeunit      1ns;
timeprecision 1ps;


module zedboard_video_tpg_hdmi #
(
  // Parameters
  parameter string id_description = "",  // P:Description ............ Max 128 Characters
  parameter string id_company     = "",  // P:Company ................ Max  64 Characters
  parameter string id_author      = "",  // P:Author ................. Max  64 Characters
  parameter string id_version     = "",  // P:Version ................ Max  32 Characters
  parameter string id_timestamp   = "",  // P:Timestamp .............. Max  32 Characters
  parameter string id_hash        = ""   // P:Hash ................... Max  64 Characters
)
(
  // Board Clock (100MHz)
  input         sys_clock,          // I:Clock
  // LEDs
  output [ 7:0] leds,               // O:LEDs
  // DIP Switches
  input  [ 7:0] switches,           // I:DIP Switches
  // Push Buttons
  input  [ 4:0] buttons,            // I:Push Buttons
  // HDMI
  output        vid_clk,            // O:Clock
  output        vid_active_video,   // O:Active
  output [15:0] vid_data,           // O:Data
  output        vid_hsync,          // O:Horizontal Sync
  output        vid_vsync,          // O:Vertical Sync
  // I2C (PS -> ADV7511)
  inout         vid_i2c_scl,        // B:Clock
  inout         vid_i2c_sda,        // B:Data
  // System
  inout  [14:0] DDR_addr,           // B:Address
  inout  [ 2:0] DDR_ba,             // B:Bank Address
  inout         DDR_cas_n,          // B:Column Address Select
  inout         DDR_ck_n,           // B:Clock (Neg)
  inout         DDR_ck_p,           // B:Clock (Pos)
  inout         DDR_cke,            // B:Clock Enable
  inout         DDR_cs_n,           // B:Chip Select
  inout  [ 3:0] DDR_dm,             // B:Data Mask
  inout  [31:0] DDR_dq,             // B:Data Input/Output
  inout  [ 3:0] DDR_dqs_n,          // B:Data Strobe (Neg)
  inout  [ 3:0] DDR_dqs_p,          // B:Data Strobe (Pos)
  inout         DDR_odt,            // B:Output Dynamic Termination
  inout         DDR_ras_n,          // B:Row Address Select
  inout         DDR_reset_n,        // B:Reset
  inout         DDR_we_n,           // B:Write Enable
  inout         FIXED_IO_ddr_vrn,   // B:Termination Voltage
  inout         FIXED_IO_ddr_vrp,   // B:Termination Voltage
  inout  [53:0] FIXED_IO_mio,       // B:Peripheral Input/Output
  inout         FIXED_IO_ps_clk,    // B:System Reference Clock
  inout         FIXED_IO_ps_porb,   // B:Power On Reset
  inout         FIXED_IO_ps_srstb   // B:External System Reset
);


  // Function to convert a string to a vector (max 128 characters)
  function automatic [1023:0] fmt(input string str);
    int len;
    bit [1023:0] tmp;
    len = str.len();
    for (int i=0; i<len; i++)
      tmp[8*i +: 8] = str.getc(i);
    fmt = tmp;
  endfunction


  // Top-Level Block Design
  system system_i
   (
    // Identification Strings
    .id_description    ( fmt(id_description) ),  // P:Description
    .id_company        ( fmt(id_company)     ),  // P:Company
    .id_author         ( fmt(id_author)      ),  // P:Author
    .id_version        ( fmt(id_version)     ),  // P:Version
    .id_timestamp      ( fmt(id_timestamp)   ),  // P:Timestamp
    .id_hash           ( fmt(id_hash)        ),  // P:Hash
    // Board Clock
    .sys_clock         ( sys_clock           ),  // I:Clock
    // LEDs
    .leds              ( leds                ),  // O:LEDs
    // DIP Switches
    .switches          ( switches            ),  // I:DIP Switches
    // Push Buttons
    .buttons           ( buttons             ),  // I:Push Buttons
    // HDMI
    .vid_active_video  ( vid_active_video    ),  // O:Clock
    .vid_clk           ( vid_clk             ),  // O:Active
    .vid_data          ( vid_data            ),  // O:Data
    .vid_hsync         ( vid_hsync           ),  // O:Horizontal Sync
    .vid_vsync         ( vid_vsync           ),  // O:Vertical Sync
    // I2C (PS -> ADV7511)
    .IIC_0_scl_i       ( IIC_0_scl_i         ),  // I:Clock Input
    .IIC_0_scl_o       ( IIC_0_scl_o         ),  // O:Clock Output
    .IIC_0_scl_t       ( IIC_0_scl_t         ),  // O:Clock Tri-state
    .IIC_0_sda_i       ( IIC_0_sda_i         ),  // I:Data Input
    .IIC_0_sda_o       ( IIC_0_sda_o         ),  // O:Data Output
    .IIC_0_sda_t       ( IIC_0_sda_t         ),  // O:Data Tri-state
    // System
    .DDR_addr          ( DDR_addr            ),  // B:Address
    .DDR_ba            ( DDR_ba              ),  // B:Bank Address
    .DDR_cas_n         ( DDR_cas_n           ),  // B:Column Address Select
    .DDR_ck_n          ( DDR_ck_n            ),  // B:Clock (Neg)
    .DDR_ck_p          ( DDR_ck_p            ),  // B:Clock (Pos)
    .DDR_cke           ( DDR_cke             ),  // B:Clock Enable
    .DDR_cs_n          ( DDR_cs_n            ),  // B:Chip Select
    .DDR_dm            ( DDR_dm              ),  // B:Data Mask
    .DDR_dq            ( DDR_dq              ),  // B:Data Input/Output
    .DDR_dqs_n         ( DDR_dqs_n           ),  // B:Data Strobe (Neg)
    .DDR_dqs_p         ( DDR_dqs_p           ),  // B:Data Strobe (Pos)
    .DDR_odt           ( DDR_odt             ),  // B:Output Dynamic Termination
    .DDR_ras_n         ( DDR_ras_n           ),  // B:Row Address Select
    .DDR_reset_n       ( DDR_reset_n         ),  // B:Reset
    .DDR_we_n          ( DDR_we_n            ),  // B:Write Enable
    .FIXED_IO_ddr_vrn  ( FIXED_IO_ddr_vrn    ),  // B:Termination Voltage
    .FIXED_IO_ddr_vrp  ( FIXED_IO_ddr_vrp    ),  // B:Termination Voltage
    .FIXED_IO_mio      ( FIXED_IO_mio        ),  // B:Peripheral Input/Output
    .FIXED_IO_ps_clk   ( FIXED_IO_ps_clk     ),  // B:System Reference Clock
    .FIXED_IO_ps_porb  ( FIXED_IO_ps_porb    ),  // B:Power On Reset
    .FIXED_IO_ps_srstb ( FIXED_IO_ps_srstb   )   // B:External System Reset
   );


  // Tri-State Buffer (I2C Clock)
  IOBUF IIC_0_0_scl_iobuf
   (
    .I  ( IIC_0_scl_o   ),  // I:Input
    .O  ( IIC_0_scl_i   ),  // O:Output
    .T  ( IIC_0_scl_t   ),  // I:Tri-State
    .IO ( vid_i2c_scl   )   // B:Result
   );


  // Tri-State Buffer (I2C Data)
  IOBUF IIC_0_0_sda_iobuf
   (
    .I  ( IIC_0_sda_o   ),  // I:Input
    .O  ( IIC_0_sda_i   ),  // O:Output
    .T  ( IIC_0_sda_t   ),  // I:Tri-State
    .IO ( vid_i2c_sda   )   // B:Result
   );


endmodule

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0030/zedboard_video_tpg_hdmi/fw/src/design/zedboard_video_tpg_hdmi.sv -O zedboard_video_tpg_hdmi/fw/src/design/zedboard_video_tpg_hdmi.sv

Edit the pin constraints to add the Board Clock, I2C & HDMI Video connections.

steve@Desktop:~/swuk_tutorial$ subl zedboard_video_tpg_hdmi/fw/src/constraint/zedboard_video_tpg_hdmi.xdc

zedboard_video_tpg_hdmi.xdc

#
# File .......... zedboard_video_tpg_hdmi.xdc
# Author ........ Steve Haywood
# Website ....... http://www.spacewire.co.uk
# Project ....... Zedboard Video TPG HDMI (SpaceWire UK Tutorial)
# Date .......... 20 Dec 2025
# Version ....... 1.0
# Description ...
#   Top level pin & timing constraints.
#


# Clock Source - Bank 13
set_property PACKAGE_PIN Y9 [get_ports {sys_clock}];  # "GCLK"


# User LEDs - Bank 33
set_property PACKAGE_PIN T22 [get_ports {leds[0]}];  # "LD0"
set_property PACKAGE_PIN T21 [get_ports {leds[1]}];  # "LD1"
set_property PACKAGE_PIN U22 [get_ports {leds[2]}];  # "LD2"
set_property PACKAGE_PIN U21 [get_ports {leds[3]}];  # "LD3"
set_property PACKAGE_PIN V22 [get_ports {leds[4]}];  # "LD4"
set_property PACKAGE_PIN W22 [get_ports {leds[5]}];  # "LD5"
set_property PACKAGE_PIN U19 [get_ports {leds[6]}];  # "LD6"
set_property PACKAGE_PIN U14 [get_ports {leds[7]}];  # "LD7"


# HDMI Output - Bank 33
set_property PACKAGE_PIN W18  [get_ports {vid_clk}];           # "HD-CLK"
set_property PACKAGE_PIN Y13  [get_ports {vid_data[0]}];       # "HD-D0"
set_property PACKAGE_PIN AA13 [get_ports {vid_data[1]}];       # "HD-D1"
set_property PACKAGE_PIN AA14 [get_ports {vid_data[2]}];       # "HD-D2"
set_property PACKAGE_PIN Y14  [get_ports {vid_data[3]}];       # "HD-D3"
set_property PACKAGE_PIN AB15 [get_ports {vid_data[4]}];       # "HD-D4"
set_property PACKAGE_PIN AB16 [get_ports {vid_data[5]}];       # "HD-D5"
set_property PACKAGE_PIN AA16 [get_ports {vid_data[6]}];       # "HD-D6"
set_property PACKAGE_PIN AB17 [get_ports {vid_data[7]}];       # "HD-D7"
set_property PACKAGE_PIN AA17 [get_ports {vid_data[8]}];       # "HD-D8"
set_property PACKAGE_PIN Y15  [get_ports {vid_data[9]}];       # "HD-D9"
set_property PACKAGE_PIN W13  [get_ports {vid_data[10]}];      # "HD-D10"
set_property PACKAGE_PIN W15  [get_ports {vid_data[11]}];      # "HD-D11"
set_property PACKAGE_PIN V15  [get_ports {vid_data[12]}];      # "HD-D12"
set_property PACKAGE_PIN U17  [get_ports {vid_data[13]}];      # "HD-D13"
set_property PACKAGE_PIN V14  [get_ports {vid_data[14]}];      # "HD-D14"
set_property PACKAGE_PIN V13  [get_ports {vid_data[15]}];      # "HD-D15"
set_property PACKAGE_PIN U16  [get_ports {vid_active_video}];  # "HD-DE"
set_property PACKAGE_PIN V17  [get_ports {vid_hsync}];         # "HD-HSYNC"
set_property PACKAGE_PIN AA18 [get_ports {vid_i2c_scl}];       # "HD-SCL"
set_property PACKAGE_PIN Y16  [get_ports {vid_i2c_sda}];       # "HD-SDA"
set_property PACKAGE_PIN W17  [get_ports {vid_vsync}];         # "HD-VSYNC"


# User Push Buttons - Bank 34
set_property PACKAGE_PIN P16 [get_ports {buttons[0]}];  # "BTNC"
set_property PACKAGE_PIN R16 [get_ports {buttons[1]}];  # "BTND"
set_property PACKAGE_PIN N15 [get_ports {buttons[2]}];  # "BTNL"
set_property PACKAGE_PIN R18 [get_ports {buttons[3]}];  # "BTNR"
set_property PACKAGE_PIN T18 [get_ports {buttons[4]}];  # "BTNU"


# User DIP Switches - Bank 34 & 35
set_property PACKAGE_PIN F22 [get_ports {switches[0]}];  # "SW0"
set_property PACKAGE_PIN G22 [get_ports {switches[1]}];  # "SW1"
set_property PACKAGE_PIN H22 [get_ports {switches[2]}];  # "SW2"
set_property PACKAGE_PIN F21 [get_ports {switches[3]}];  # "SW3"
set_property PACKAGE_PIN H19 [get_ports {switches[4]}];  # "SW4"
set_property PACKAGE_PIN H18 [get_ports {switches[5]}];  # "SW5"
set_property PACKAGE_PIN H17 [get_ports {switches[6]}];  # "SW6"
set_property PACKAGE_PIN M15 [get_ports {switches[7]}];  # "SW7"


# Banks
set_property IOSTANDARD LVCMOS33 [get_ports -of_objects [get_iobanks 13]];
set_property IOSTANDARD LVCMOS33 [get_ports -of_objects [get_iobanks 33]];
set_property IOSTANDARD LVCMOS18 [get_ports -of_objects [get_iobanks 34]];
set_property IOSTANDARD LVCMOS18 [get_ports -of_objects [get_iobanks 35]];


# False Paths
set_false_path -to [get_pins {system_i/axi_gpio_zed_0/inst/leds_meta_reg[*]/D}]

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0030/zedboard_video_tpg_hdmi/fw/src/constraint/zedboard_video_tpg_hdmi.xdc -O zedboard_video_tpg_hdmi/fw/src/constraint/zedboard_video_tpg_hdmi.xdc

Check GIT status to make sure all is well and there are no spurious elements.

steve@Desktop:~/swuk_tutorial$ git status -u
On branch my_master
Your branch is behind 'origin/my_master' by 2 commits, and can be fast-forwarded.
  (use "git pull" to update your local branch)

Untracked files:
  (use "git add <file>..." to include in what will be committed)
        zedboard_video_tpg_hdmi/.gitignore
        zedboard_video_tpg_hdmi/fw/project.txt
        zedboard_video_tpg_hdmi/fw/src/constraint/zedboard_video_tpg_hdmi.xdc
        zedboard_video_tpg_hdmi/fw/src/design/zedboard_video_tpg_hdmi.sv
        zedboard_video_tpg_hdmi/fw/src/script/user_update_system_bd.tcl

nothing added to commit but untracked files present (use "git add" to track)

Looks good! Commit the updates, create an annotated tag and push the commit & tag up to the remote repository.

steve@Desktop:~/swuk_tutorial$ git add -A
steve@Desktop:~/swuk_tutorial$ git commit -a -m "Basic Zedboard design consisting of a ZYNQ7 Processing System controlling a pair of cascading Test Pattern Generators that output video via HDMI."
steve@Desktop:~/swuk_tutorial$ git push
steve@Desktop:~/swuk_tutorial$ git tag -a my_zedboard_video_tpg_hdmi_v1.0 -m "ZYNQ & Cascading TPG's with HDMI output"
steve@Desktop:~/swuk_tutorial$ git push origin my_zedboard_video_tpg_hdmi_v1.0

Create a potential production release for the Zedboard Video TPG HDMI (v1.0) project using pure repository source.

Close Vivado.

Clear out all the superfluous files from the project area (non-tracked files).

steve@Desktop:~/swuk_tutorial$ cd zedboard_video_tpg_hdmi
steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ rm -rf fw/vivado

Double check GIT status.

steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ git status
On branch master
Your branch is up-to-date with 'origin/master'.

nothing to commit, working tree clean

Build the design from clean repository source.

steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ swuk_create_vivado_project --build

Archive the generated hardware platform & bitstream for safe keeping. These files are not held in the repository as they can be recreated from source.

steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ cp fw/vivado/system_wrapper.xsa ${swuk_user}/hardware/zedboard_video_tpg_hdmi_v1.0.xsa
steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ cp fw/vivado/zedboard_video_tpg_hdmi.runs/impl_1/zedboard_video_tpg_hdmi.bit ${swuk_user}/firmware/zedboard_video_tpg_hdmi_v1.0.bit
steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ cd ..

Change the version (or revision) number for this new development, this prevents ghost (post-release, same version) builds from appearing. Also remove Example Design from the Project line.

steve@Desktop:~/swuk_tutorial$ subl zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt

project.txt

Zedboard PetaLinux
SpaceWire UK
Steve Haywood
15.0

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0031/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt

Check out the changes.

steve@Desktop:~/swuk_tutorial$ git difftool zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt

Configure the PetaLinux project to use the exported hardware platform from the zedboard_video_tpg_hdmi Vivado project.

steve@Desktop:~/swuk_tutorial$ cd zedboard_linux/os/petalinux
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config --get-hw-description ../../../zedboard_video_tpg_hdmi/fw/vivado/zedboard_video_tpg_hdmi.xsa
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config --get-hw-description ../../../zedboard_video_tpg_hdmi/fw/vivado/system_wrapper.xsa

The configuration menu now appears.

Select Save to save the configuration. Missing Image!

Select Ok to confirm the save. Missing Image!

Select Exit to continue. Missing Image!

Select Exit to exit the menu. Missing Image!

Check the config file (line 117) to ensure the PS i2c has been enabled.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool project-spec/configs/config

CONFIG_SUBSYSTEM_I2C_PS7_I2C_0_SELECT=y

Launch the PetaLinux configuration tool.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-config -c rootfs

Navigate the menu selecting Filesystem Packages » base » i2c-tools, enable i2c-tools and then save the configuration and exit the tool.

Check the rootfs_config file to ensure i2c-tools has been enabled. (line 159).

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool project-spec/configs/rootfs_config

CONFIG_i2c-tools=y

Create a blank application component (auto enabled) to configure the ADV7511 HDMI Transmitter IC at boot time.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-create --type apps --template install --name adv7511-config --enable
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cd ../../..

Edit the newly created auto-run application to include the ADV7511 configuration commands.

steve@Desktop:~/swuk_tutorial$ subl zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/files/adv7511-config

adv7511-config

#!/bin/sh

#
# File .......... adv7511-config
# Author ........ Steve Haywood
# Website ....... http://www.spacewire.co.uk
# Project ....... Zedboard Linux (SpaceWire UK Tutorial)
# Date .......... 22 Dec 2025
# Version ....... 1.0
# Description ...
#   Script to configure the ADV7511 HDMI Transmitter IC.
#

ADV7511_I2C_ADDR=0x39    # ADV7511

VTPG_IP_BASE=0x40040000  # Video Test Pattern Generator
VTC_IP_BASE=0x40050000   # Video Timing Controller
CW_IP_BASE=0x40030000    # Clocking Wizard

# [7:4] I2S Sampling Frequency (CS bits 27-24) ... 44.1 KHz
# [3:0] Input ID ................................. 16, 20, 24 bit YCbCr 4:2:2 (separate syncs)
i2cset -y 0 $ADV7511_I2C_ADDR 0x15 0x01

# [ 7 ] Output Format ....................... 4:4:4
# [ 6 ] Reserved ............................ 0
# [5:4] Color Depth ......................... 8-bit
# [3:2] Input Style ......................... Style 1
# [ 1 ] DDR Input Edge ...................... Falling edge
# [ 0 ] Output Colorspace for Black Image ... RGB
i2cset -y 0 $ADV7511_I2C_ADDR 0x16 0x38

# [ 7 ] Reserved .................... 0
# [ 6 ] Input Video Bus Reverse ..... Normal Bus Order
# [ 5 ] DDR Alignment ............... DDR input is D[17:0]
# [4:3] Video Input Justification ... Left justified
# [2:0] ??? ......................... ???
i2cset -y 0 $ADV7511_I2C_ADDR 0x48 0x08

# [ 7 ] ??? ...................... ???
# [ 6 ] Power Down ............... All circuits powered up
# [ 5 ] Fixed .................... 0
# [ 4 ] Reserved ................. 1
# [3:2] Fixed .................... 00
# [ 1 ] Sync Adjustment Enable ... Disabled
# [ 0 ] Fixed .................... 0
i2cset -y 0 $ADV7511_I2C_ADDR 0x41 0x10

# Fixed registers that must be set on power up
i2cset -y 0 $ADV7511_I2C_ADDR 0x98 0x03
i2cset -y 0 $ADV7511_I2C_ADDR 0x9A 0xE0
i2cset -y 0 $ADV7511_I2C_ADDR 0x9C 0x30
i2cset -y 0 $ADV7511_I2C_ADDR 0x9D 0x61
i2cset -y 0 $ADV7511_I2C_ADDR 0xA2 0xA4
i2cset -y 0 $ADV7511_I2C_ADDR 0xA3 0xA4
i2cset -y 0 $ADV7511_I2C_ADDR 0xE0 0xD0
i2cset -y 0 $ADV7511_I2C_ADDR 0xF9 0x00

# Color Space Conversion # CSC Enabled (YCbCr to RGB) 11100111
# [ 7 ] (0) CSC Enable .................................................. CSC Enabled
# [6:5] (10) CSC Scaling Factor ......................................... +/- 4.0, -16384 - 16380
# [4:0] (00110) Color space Converter (CSC) coefficient for equations ... ?
i2cset -y 0 $ADV7511_I2C_ADDR 0x18 0xE7

# Set RGB in AVinfo Frame
i2cset -y 0 $ADV7511_I2C_ADDR 0x55 0x00

# Aspect Ration
i2cset -y 0 $ADV7511_I2C_ADDR 0x56 0x28

# HPD Control always high
i2cset -y 0 $ADV7511_I2C_ADDR 0xD6 0xC0

# DVI Mode, no HDCP
i2cset -y 0 $ADV7511_I2C_ADDR 0xAF 0x04

# Fixed I2C Address
i2cset -y 0 $ADV7511_I2C_ADDR 0xF9 0x00

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0031/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/files/adv7511-config -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/files/adv7511-config

Change the BitBake recipe to make it suitable for an auto-start application.

steve@Desktop:~/swuk_tutorial$ subl zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/adv7511-config.bb

adv7511-config.bb

#
# File .......... adv7511-config.bb
# Author ........ Steve Haywood
# Website ....... http://www.spacewire.co.uk
# Project ....... Zedboard Linux (SpaceWire UK Tutorial)
# Date .......... 22 Dec 2025
# Version ....... 1.0
# Description ...
#   Recipe for an autostart application.
#

SUMMARY = "Simple adv7511-config application"
SECTION = "PETALINUX/apps"
LICENSE = "MIT"
LIC_FILES_CHKSUM ="file://${COMMON_LICENSE_DIR}/MIT;md5=0835ade698e0bcf8506ecda2f7b4f302"

SRC_URI = "file://adv7511-config"

S = "${WORKDIR}"

FILESEXTRAPATHS_prepend := "${THISDIR}/files:"

inherit update-rc.d

INITSCRIPT_NAME = "adv7511-config"
INITSCRIPT_PARAMS = "start 99 S ."

do_install() {
  install -d ${D}${sysconfdir}/init.d
  install -m 0755 ${S}/adv7511-config ${D}${sysconfdir}/init.d/adv7511-config
}
FILES_${PN} += "${sysconfdir}/*"

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/repos/0031/zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/adv7511-config.bb -O zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/adv7511-config.bb

Check GIT status to make sure all is well and there are no spurious elements.

steve@Desktop:~/swuk_tutorial$ git status -u
On branch my_master
Your branch is up-to-date with 'origin/my_master'.

Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git restore <file>..." to discard changes in working directory)
        modified:   zedboard_linux/os/petalinux/.petalinux/metadata
        modified:   zedboard_linux/os/petalinux/project-spec/configs/config
        modified:   zedboard_linux/os/petalinux/project-spec/configs/rootfs_config
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/ps7_init.c
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/ps7_init.h
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/ps7_init.html
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/ps7_init.tcl
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/ps7_init_gpl.c
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/ps7_init_gpl.h
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/system.xsa
        modified:   zedboard_linux/os/petalinux/project-spec/hw-description/system_wrapper.bit
        modified:   zedboard_linux/os/petalinux/project-spec/meta-user/conf/user-rootfsconfig
        modified:   zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/website/files/project.txt

Untracked files:
  (use "git add <file>..." to include in what will be committed)
        zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/.gdbinit
        zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/README
        zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/adv7511-config.bb
        zedboard_linux/os/petalinux/project-spec/meta-user/recipes-apps/adv7511-config/files/adv7511-config

no changes added to commit (use "git add" and/or "git commit -a")

Looks good!

Commit the updates, create an annotated tag and push the commit & tag up to the remote repository.

steve@Desktop:~/swuk_tutorial$ git add -A
steve@Desktop:~/swuk_tutorial$ git commit -a -m "Added ADV7511 configuration auto-start application. This version of PetaLinux includes the XSA from zedboard_video_tpg_hdmi v1.0."
steve@Desktop:~/swuk_tutorial$ git push
steve@Desktop:~/swuk_tutorial$ git tag -a my_zedboard_linux_v15.0 -m "PetaLinux, Peek/Poke, LED Runner, LAMP (Apache, SQLite, PHP & myLiteAdmin), Peek/Poke CGI, Load Firmware CGI, PL Access, Style Sheet, Register Bank, ID Strings & ADV5711 configuration with XSA from zedboard_video_tpg_hdmi v1.0"
steve@Desktop:~/swuk_tutorial$ git push origin my_zedboard_linux_v15.0

Create a potential production release for the PetaLinux (v15.0) project using pure repository source. .

This new release will include the Zedboard Video TPG HDMI files and also the ADV7511 configuration.

(optional) Clear out all the superfluous files from the project area (non-tracked files).

steve@Desktop:~/swuk_tutorial$ cd zedboard_linux/os/petalinux
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git clean -fdx

(optional) Clear out the transfer area.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ rm -rf /tftpboot/*

Double check GIT status.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git status
On branch master
Your branch is up-to-date with 'origin/master'.

nothing to commit, working tree clean

Build/rebuild PetaLinux.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_petalinux-build

Note: A fresh build of PetaLinux takes a long time to complete and can be prone to failure due to internet downloads. If the build process fails, firstly check the GIT status & difftool for any noddy file changes, restore these file changes and then execute the build command again until it finally completes. Example below :-

::
::
ERROR: Failed to build project. Check the ~/swuk_tutorial/zedboard_linux/os/petalinux/build/build.log file for more details...
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git status -u
On branch my_master
Your branch is up-to-date with 'origin/my_master'.

Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git restore <file>..." to discard changes in working directory)
        modified:   .petalinux/metadata
        modified:   project-spec/configs/config

no changes added to commit (use "git add" and/or "git commit -a")
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git difftool
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ git restore .petalinux/metadata project-spec/configs/config
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ swuk_petalinux-build
::
::
INFO: Successfully copied built images to tftp dir: /tftpboot
[INFO] Successfully built project

Package PetaLinux to produce the boot image BOOT.BIN, this will include the first stage boot loader zynq_fsbl.elf, the programmable logic system.bit, the Linux boot loader u-boot.elf and the device tree blob system.dtb.

steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ petalinux-package --boot --force --fsbl images/linux/zynq_fsbl.elf --fpga images/linux/system.bit --uboot images/linux/u-boot.elf
steve@Desktop:~/swuk_tutorial/zedboard_linux/os/petalinux$ cd ../../..

Archive the generated files for safe keeping. These files are not held in the repository as they can be recreated from source.

steve@Desktop:~/swuk_tutorial$ mkdir -p ${swuk_user}/petalinux/v15.0
steve@Desktop:~/swuk_tutorial$ cp /tftpboot/{BOOT.BIN,boot.scr,image.ub} ${swuk_user}/petalinux/v15.0

Upload the newly created PetaLinux Boot & OS files. Select 0 or 6.

steve@Desktop:~/swuk_tutorial$ swuk_upload_boot ${swuk_zedboard_ip}

Boot files @ /tftpboot :-

0) - BOOT.BIN - boot.scr - image.ub

Boot files @ /home/steve/Documents/swuk_tutorial/petalinux :-

1) v10.0 - BOOT.BIN - boot.scr - image.ub
2) v11.0 - BOOT.BIN - boot.scr - image.ub
3) v12.0 - BOOT.BIN - boot.scr - image.ub
4) v13.0 - BOOT.BIN - boot.scr - image.ub
5) v14.0 - BOOT.BIN - boot.scr - image.ub
6) v15.0 - BOOT.BIN - boot.scr - image.ub

q) Quit

Select boot files for upload or quit : 6

Remote reboot (wait): 30 / 30s
Remote reboot (ping): 4 / 30s
Remote reboot (ssh): 10 / 30s

Uploaded BOOT.BIN, boot.scr & image.ub to /media/sd-mmcblk0p1 @ 192.168.2.87.

Remote system credentials :-
Zedboard PetaLinux
SpaceWire UK
Steve Haywood
15.0
28-Jan-2026 - 03:48:32
e45fe0077ecd8c622f43eeef4d20a0096b9c1ce2

Looks good!

Access the webserver running on the Zedboard using a browser pointing at the Zedboard's IP address (192.168.2.87).

Select System from the menu bar (refresh page if already open).

The Operating System Information table should show Zedboard PetaLinux description along with a version of 15.0.

The Firmare Information table should now show Zedboard Video TPG HDMI description along with a version of 1.0.

There should be no unsavoury comments after the version numbers! Missing Image!

The Timestamp & Hash shown from GIT (first entry) should marry up perfectly with the displayed Operating System Information. All being well the second GIT entry should marry up perfectly with the displayed Firmware Information.

steve@Desktop:~/swuk_tutorial/zedboard_video_tpg_hdmi$ git log -2
commit 8e3e56bf4c1a60533cf96186c94650db98839ac9 (HEAD -> my_master, tag: my_zedboard_linux_v15.0, origin/my_master)
Author: Steve Haywood <steve@spacewire.co.uk>
Date:   Sat Feb 7 09:00:38 2026 +0000

    Added ADV7511 configuration auto-start application. This version of PetaLinux includes the XSA from zedboard_video_tpg_hdmi v1.0.

commit 404c5ae2ca1015d767fcde2cf00aa8bb24a11ef6 (tag: my_zedboard_video_tpg_hdmi_v1.0)
Author: Steve Haywood <steve@spacewire.co.uk>
Date:   Sat Feb 7 08:40:30 2026 +0000

    Basic Zedboard design consisting of a ZYNQ7 Processing System controlling a pair of cascading Test Pattern Generators that output video via HDMI.

Looks good!

To get some video out of the Zedboard's HDMI connector the two TPG's need to be configured and enabled. Lets aim for a combined V & H ramp background with two moving box overlays, one green and one blue.

Test Pattern Generator 1

Set Resolution to 1920 x 1080
Set Colour Format to YUV 422
Set Background Pattern to Combined V & H ramp
Set Box Colour to green, Box Size to 256 & Motion Speed to 10
Set Foreground Pattern to Moving Box
Start the TPG with auto-restart (continuous frames)

Test Pattern Generator 2

Set Resolution to 1920 x 1080
Set Colour Format to YUV 422
Set Background Pattern to Pass through
Set Box Colour to blue, Box Size to 175 & Motion Speed to 8
Set Foreground Pattern to Moving Box
Start the TPG with auto-restart (continuous frames)
Enable video input

There are quite a lot of registers that need to be configured for the above setup to work. Many ways to go about this, a shell script or compiled C running on PetaLinux for example. As an opening gambit a simple set of Peek & Poke Addresses configuration file will be created. Although this looks a little involved it is simply a list of address locations with default values associated. The widgets add a little complication but the effort is worth it in the end as it makes the bit-bashing very much more user friendly.

steve@Desktop:~/swuk_tutorial$ subl ${swuk_user}/configuration/zedboard_video_tpg_hdmi.txt

zedboard_video_tpg_hdmi.txt

sec|Test Pattern Generator 0
reg|0x40030010|false|true|1080|true|Active Height
reg|0x40030018|false|true|1920|true|Active Width
select|0x40030040|false|true|2#0^RGB#1^YUV 444#2^YUV 422#3^YUV 420|true|Color Format
select|0x40030020|false|true|14#0^Pass through#1^Horizontal Ramp#2^Vertical Ramp#3^Temporal Ramp#4^Solid red#5^Solid green#6^Solid blue#7^Solid black#8^Solid white#9^Color bars#10^Zone Plate#11^Tartan Color Bars#12^Cross hatch pattern#13^Color sweep pattern#14^Combined V & H ramp#15^B & W checker board#16^Pseudorandom pattern#17^DP color ramp#18^DP B & W vertical lines#19^DP color square|true|Background Pattern ID
reg|0x40030000|true|true|0x81|true|Control
range|0x40030078|false|true|256#0#511|true|Box Size
range|0x40030080|false|true|105#0#255|true|Box Color (Y)
range|0x40030088|false|true|68#0#255|true|Box Color (U)
range|0x40030090|false|true|52#0#255|true|Box Color (V)
range|0x40030038|false|true|10#0#31|true|Motion Speed
select|0x40030028|false|true|1#0^No overlay#1^Moving box#2^Cross hairs|true|Forground Pattern ID
range|0x40030048|false|true|960#0#1919|true|Cross hair horizontal
range|0x40030050|false|true|540#0#1079|true|Cross hair vertical

sec|Test Pattern Generator 1
reg|0x40040010|false|true|1080|true|Active Height
reg|0x40040018|false|true|1920|true|Active Width
select|0x40040040|false|true|2#0^RGB#1^YUV 444#2^YUV 422#3^YUV 420|true|Color Format
select|0x40040020|false|true|0#0^Pass through#1^Horizontal Ramp#2^Vertical Ramp#3^Temporal Ramp#4^Solid red#5^Solid green#6^Solid blue#7^Solid black#8^Solid white#9^Color bars#10^Zone Plate#11^Tartan Color Bars#12^Cross hatch pattern#13^Color sweep pattern#14^Combined V & H ramp#15^B & W checker board#16^Pseudorandom pattern#17^DP color ramp#18^DP B & W vertical lines#19^DP color square|true|Background Pattern ID
reg|0x40040000|true|true|0x81|true|Control
range|0x40040078|false|true|175#0#511|true|Box Size
range|0x40040080|false|true|18#0#255|true|Box Color (Y)
range|0x40040088|false|true|208#0#255|true|Box Color (U)
range|0x40040090|false|true|114#0#255|true|Box Color (V)
range|0x40040038|false|true|8#0#31|true|Motion Speed
select|0x40040028|false|true|1#0^No overlay#1^Moving box#2^Cross hairs|true|Forground Pattern ID
range|0x40040048|false|true|960#0#1919|true|Cross hair horizontal
range|0x40040050|false|true|540#0#1079|true|Cross hair vertical
reg|0x40040098|false|true|1|true|Enable input

sec|VTC - Set timings for 1080p
reg|0x40050060|true|true|0x04380780|false|Horizontal and Vertical Frame Size (without blanking) for field 0
reg|0x40050070|true|true|0x00000898|false|Horizontal Frame Size (with blanking)
reg|0x40050074|true|true|0x04650465|false|Vertical Frame Size (with blanking)
reg|0x40050078|true|true|0x080407D8|false|Start and end cycle index of HSync
reg|0x4005007C|true|true|0x07D807D8|false|Start and end cycle index of VBlank for field 0
reg|0x40050080|true|true|0x0440043B|false|Start and end line index of VSync for field 0
reg|0x40050084|true|true|0x07D807D8|false|Start and end cycle index of VSync for field 0
reg|0x40050088|true|true|0x07D807D8|false|Start and end cycle index of VBlank for field 1
reg|0x4005008C|true|true|0x0440043B|false|Start and end line index of VSync for field 1
reg|0x40050090|true|true|0x07D807D8|false|Start and end cycle index of VSync for field 1
reg|0x40050094|true|true|0x04380780|false|Horizontal and Vertical Frame size for field 1
reg|0x40050000|true|true|0x00000004|true|General Control

sec|CW - Set clock to 148.5MHz for 1080p@60Hz (Full HD)
reg|0x40060200|true|true|0x047D2504|false|Clock Configuration Register 0
reg|0x40060208|true|true|0x0004FA06|false|Clock Configuration Register 2
reg|0x4006025C|true|true|0x00000003|false|Clock Configuration Register 23

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/documents/swuk_tutorial/configuration/zedboard_video_tpg_hdmi.txt -O ${swuk_user}/configuration/zedboard_video_tpg_hdmi.txt

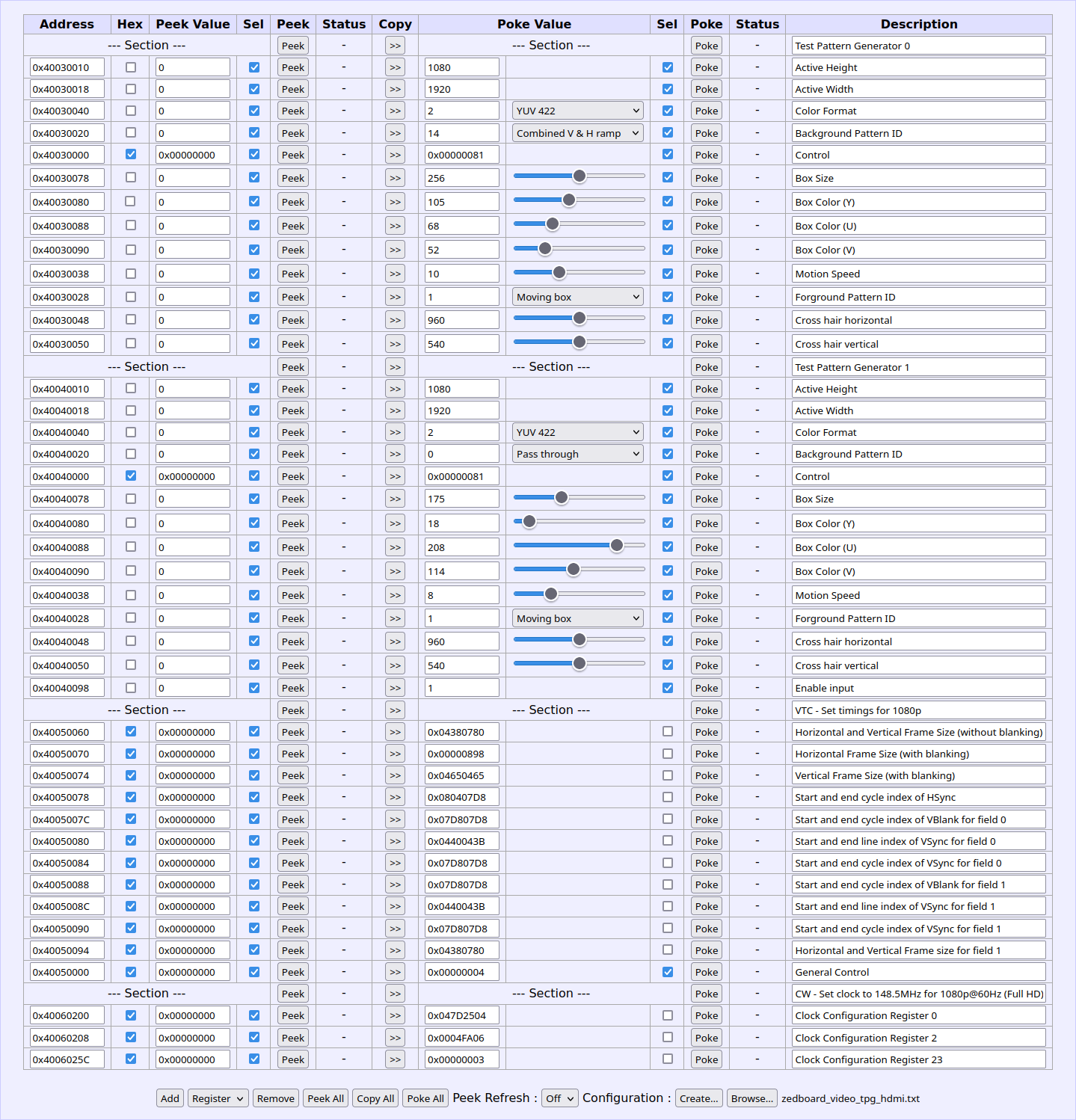

Access the webserver running on the Zedboard using a browser pointing at the Zedboard's IP address (192.168.2.87). Select Peek & Poke from the menu bar.

Browse for the above configuration file and open it. Although this looks complicated in reality it isn't. With the register values defined all that is now required is to click on Poke All to fire up both TPG's and output video via the HDMI connector. Missing Image!

LED 7 should illuminate to indicate video lock & the following should be seen on the screen attached to the HDMI port of the Zedboard. The combined V & H ramp is provided from TPG 0 along with the larger green moving box. This video is then passed through TPG 1 and overlaid with the second smaller blue moving box.

The hardware used for the following video captures was the Zedboard's HDMI output connected to a HDMI to USB video capture card.

The software used to display the video from the HDMI to USB video capture card was Guvcview (Frame Rate: 60fps & Resolution: 1280x720). The window/screen area capture was done using Kazam (Frame rate: 60, Record with: VP8 (WEBM)).

Note: The video looks much better on a HDMI monitor!

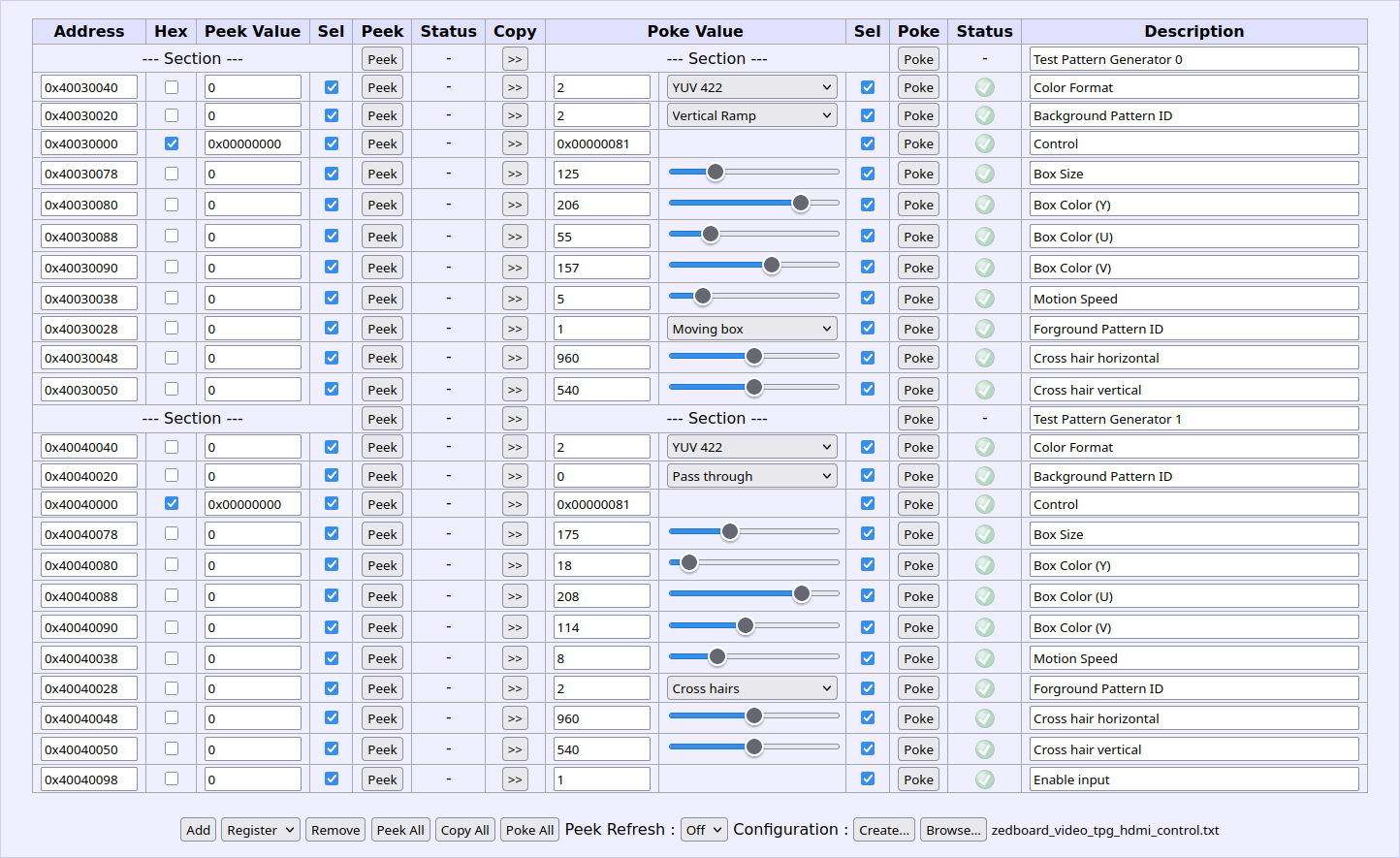

Various elements of the TPG's can easily be controlled on-the-fly using the webpage widgets.

The configuration file above can be split into smaller configurations that perform more specific actions.

Setup firmware registers for 1080p @ 60Hz.

steve@Desktop:~/swuk_tutorial$ subl ${swuk_user}/configuration/zedboard_video_tpg_hdmi_1080p_60hz.txt

zedboard_video_tpg_hdmi_1080p_60hz.txt

sec|Test Pattern Generator 0 - Set resolution for 1080p
reg|0x40030010|false|true|1080|true|Active Height
reg|0x40030018|false|true|1920|true|Active Width

sec|Test Pattern Generator 1 - Set resolution for 1080p
reg|0x40040010|false|true|1080|true|Active Height
reg|0x40040018|false|true|1920|true|Active Width

sec|Video Timing Controller - Set timings for 1080p
reg|0x40050060|true|true|0x04380780|true|Horizontal and Vertical Frame Size (without blanking) for field 0
reg|0x40050064|true|true|0x00000898|false|Generator Timing Status Register
reg|0x40050068|true|true|0x00000898|true|Generator Encoding
reg|0x4005006C|true|true|0x00000898|true|Generator Polarity
reg|0x40050070|true|true|0x00000898|true|Horizontal Frame Size (with blanking)
reg|0x40050074|true|true|0x04650465|true|Vertical Frame Size (with blanking)
reg|0x40050078|true|true|0x080407D8|true|Start and end cycle index of HSync
reg|0x4005007C|true|true|0x07D807D8|true|Start and end cycle index of VBlank for field 0
reg|0x40050080|true|true|0x0440043B|true|Start and end line index of VSync for field 0
reg|0x40050084|true|true|0x07D807D8|true|Start and end cycle index of VSync for field 0
reg|0x40050088|true|true|0x07D807D8|true|Start and end cycle index of VBlank for field 1
reg|0x4005008C|true|true|0x0440043B|true|Start and end line index of VSync for field 1
reg|0x40050090|true|true|0x07D807D8|true|Start and end cycle index of VSync for field 1
reg|0x40050094|true|true|0x04380780|true|Horizontal and Vertical Frame size for field 1
reg|0x40050000|true|true|0x00000006|true|General Control

sec|Clocking Wizard - Set clock to 148.5MHz for 1080p@60Hz
reg|0x40060200|true|true|0x047D2504|true|Clock Configuration Register 0
reg|0x40060208|true|true|0x0004FA06|true|Clock Configuration Register 2
reg|0x4006025C|true|true|0x00000003|true|Clock Configuration Register 23

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/documents/swuk_tutorial/configuration/zedboard_video_tpg_hdmi_1080p_60hz.txt -O ${swuk_user}/configuration/zedboard_video_tpg_hdmi_1080p_60hz.txt

Setup firmware registers for 1080p @ 30Hz.

steve@Desktop:~/swuk_tutorial$ subl ${swuk_user}/configuration/zedboard_video_tpg_hdmi_1080p_30hz.txt

zedboard_video_tpg_hdmi_1080p_30hz.txt

sec|Test Pattern Generator 0 - Set resolution for 1080p
reg|0x40030010|false|true|1080|true|Active Height
reg|0x40030018|false|true|1920|true|Active Width

sec|Test Pattern Generator 1 - Set resolution for 1080p
reg|0x40040010|false|true|1080|true|Active Height
reg|0x40040018|false|true|1920|true|Active Width

sec|Video Timing Controller - Set timings for 1080p
reg|0x40050060|true|true|0x04380780|true|Horizontal and Vertical Frame Size (without blanking) for field 0
reg|0x40050064|true|true|0x00000898|false|Generator Timing Status Register
reg|0x40050068|true|true|0x00000898|true|Generator Encoding
reg|0x4005006C|true|true|0x00000898|true|Generator Polarity
reg|0x40050070|true|true|0x00000898|true|Horizontal Frame Size (with blanking)
reg|0x40050074|true|true|0x04650465|true|Vertical Frame Size (with blanking)
reg|0x40050078|true|true|0x080407D8|true|Start and end cycle index of HSync
reg|0x4005007C|true|true|0x07D807D8|true|Start and end cycle index of VBlank for field 0
reg|0x40050080|true|true|0x0440043B|true|Start and end line index of VSync for field 0
reg|0x40050084|true|true|0x07D807D8|true|Start and end cycle index of VSync for field 0
reg|0x40050088|true|true|0x07D807D8|true|Start and end cycle index of VBlank for field 1
reg|0x4005008C|true|true|0x0440043B|true|Start and end line index of VSync for field 1
reg|0x40050090|true|true|0x07D807D8|true|Start and end cycle index of VSync for field 1
reg|0x40050094|true|true|0x04380780|true|Horizontal and Vertical Frame size for field 1
reg|0x40050000|true|true|0x00000006|true|General Control

sec|Clocking Wizard - Set clock to 74.25MHz for 1080p@30Hz
reg|0x40060200|true|true|0x047D2504|true|Clock Configuration Register 0
reg|0x40060208|true|true|0x0005F40C|true|Clock Configuration Register 2
reg|0x4006025C|true|true|0x00000003|true|Clock Configuration Register 23

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/documents/swuk_tutorial/configuration/zedboard_video_tpg_hdmi_1080p_30hz.txt -O ${swuk_user}/configuration/zedboard_video_tpg_hdmi_1080p_30hz.txt

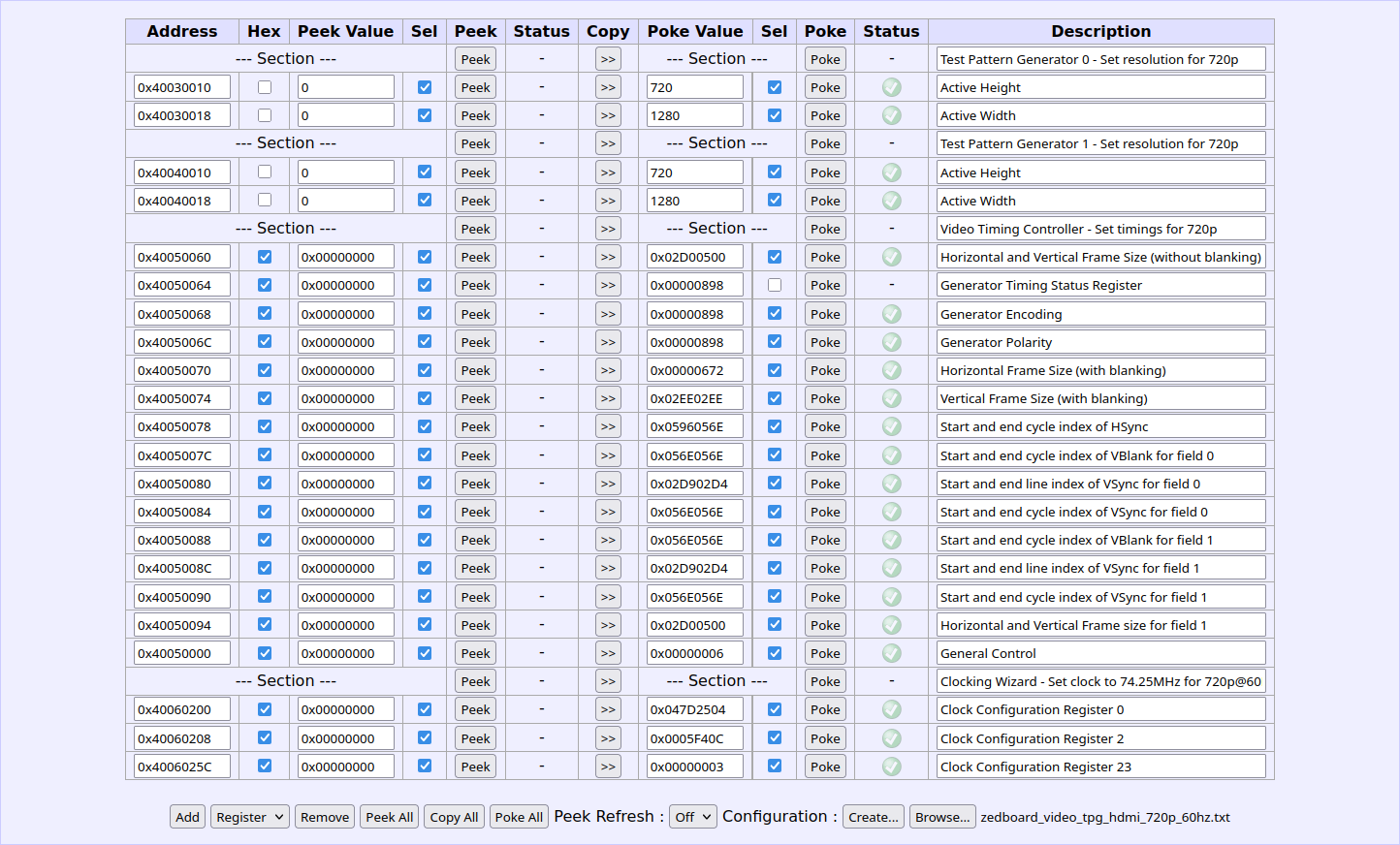

Setup firmware registers for 720p @ 60Hz.

steve@Desktop:~/swuk_tutorial$ subl ${swuk_user}/configuration/zedboard_video_tpg_hdmi_720p_60hz.txt

zedboard_video_tpg_hdmi_720p_60hz.txt

sec|Test Pattern Generator 0 - Set resolution for 720p
reg|0x40030010|false|true|720|true|Active Height
reg|0x40030018|false|true|1280|true|Active Width

sec|Test Pattern Generator 1 - Set resolution for 720p
reg|0x40040010|false|true|720|true|Active Height
reg|0x40040018|false|true|1280|true|Active Width

sec|Video Timing Controller - Set timings for 720p
reg|0x40050060|true|true|0x02D00500|true|Horizontal and Vertical Frame Size (without blanking) for field 0
reg|0x40050064|true|true|0x00000898|false|Generator Timing Status Register
reg|0x40050068|true|true|0x00000898|true|Generator Encoding
reg|0x4005006C|true|true|0x00000898|true|Generator Polarity
reg|0x40050070|true|true|0x00000672|true|Horizontal Frame Size (with blanking)
reg|0x40050074|true|true|0x02EE02EE|true|Vertical Frame Size (with blanking)
reg|0x40050078|true|true|0x0596056E|true|Start and end cycle index of HSync
reg|0x4005007C|true|true|0x056E056E|true|Start and end cycle index of VBlank for field 0
reg|0x40050080|true|true|0x02D902D4|true|Start and end line index of VSync for field 0
reg|0x40050084|true|true|0x056E056E|true|Start and end cycle index of VSync for field 0
reg|0x40050088|true|true|0x056E056E|true|Start and end cycle index of VBlank for field 1
reg|0x4005008C|true|true|0x02D902D4|true|Start and end line index of VSync for field 1
reg|0x40050090|true|true|0x056E056E|true|Start and end cycle index of VSync for field 1
reg|0x40050094|true|true|0x02D00500|true|Horizontal and Vertical Frame size for field 1
reg|0x40050000|true|true|0x00000006|true|General Control

sec|Clocking Wizard - Set clock to 74.25MHz for 720p@60Hz
reg|0x40060200|true|true|0x047D2504|true|Clock Configuration Register 0
reg|0x40060208|true|true|0x0005F40C|true|Clock Configuration Register 2
reg|0x4006025C|true|true|0x00000003|true|Clock Configuration Register 23

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/documents/swuk_tutorial/configuration/zedboard_video_tpg_hdmi_720p_60hz.txt -O ${swuk_user}/configuration/zedboard_video_tpg_hdmi_720p_60hz.txt

Control for both of the TPG's.

steve@Desktop:~/swuk_tutorial$ subl ${swuk_user}/configuration/zedboard_video_tpg_hdmi_control.txt

zedboard_video_tpg_hdmi_control.txt

sec|Test Pattern Generator 0
select|0x40030040|false|true|2#0^RGB#1^YUV 444#2^YUV 422#3^YUV 420|true|Color Format
select|0x40030020|false|true|2#0^Pass through#1^Horizontal Ramp#2^Vertical Ramp#3^Temporal Ramp#4^Solid red#5^Solid green#6^Solid blue#7^Solid black#8^Solid white#9^Color bars#10^Zone Plate#11^Tartan Color Bars#12^Cross hatch pattern#13^Color sweep pattern#14^Combined V & H ramp#15^B & W checker board#16^Pseudorandom pattern#17^DP color ramp#18^DP B & W vertical lines#19^DP color square|true|Background Pattern ID
reg|0x40030000|true|true|0x81|true|Control
range|0x40030078|false|true|125#0#511|true|Box Size
range|0x40030080|false|true|206#0#255|true|Box Color (Y)
range|0x40030088|false|true|55#0#255|true|Box Color (U)
range|0x40030090|false|true|157#0#255|true|Box Color (V)
range|0x40030038|false|true|5#0#31|true|Motion Speed
select|0x40030028|false|true|1#0^No overlay#1^Moving box#2^Cross hairs|true|Forground Pattern ID
range|0x40030048|false|true|960#0#1919|true|Cross hair horizontal
range|0x40030050|false|true|540#0#1079|true|Cross hair vertical

sec|Test Pattern Generator 1
select|0x40040040|false|true|2#0^RGB#1^YUV 444#2^YUV 422#3^YUV 420|true|Color Format
select|0x40040020|false|true|0#0^Pass through#1^Horizontal Ramp#2^Vertical Ramp#3^Temporal Ramp#4^Solid red#5^Solid green#6^Solid blue#7^Solid black#8^Solid white#9^Color bars#10^Zone Plate#11^Tartan Color Bars#12^Cross hatch pattern#13^Color sweep pattern#14^Combined V & H ramp#15^B & W checker board#16^Pseudorandom pattern#17^DP color ramp#18^DP B & W vertical lines#19^DP color square|true|Background Pattern ID
reg|0x40040000|true|true|0x81|true|Control
range|0x40040078|false|true|175#0#511|true|Box Size
range|0x40040080|false|true|18#0#255|true|Box Color (Y)
range|0x40040088|false|true|208#0#255|true|Box Color (U)
range|0x40040090|false|true|114#0#255|true|Box Color (V)
range|0x40040038|false|true|8#0#31|true|Motion Speed
select|0x40040028|false|true|2#1^No overlay#1^Moving box#2^Cross hairs|true|Forground Pattern ID
range|0x40040048|false|true|960#0#1919|true|Cross hair horizontal
range|0x40040050|false|true|540#0#1079|true|Cross hair vertical
reg|0x40040098|false|true|1|true|Enable input

Direct download available here :-

steve@Desktop:~/swuk_tutorial$ wget https://spacewire.co.uk/tutorial/shared/documents/swuk_tutorial/configuration/zedboard_video_tpg_hdmi_control.txt -O ${swuk_user}/configuration/zedboard_video_tpg_hdmi_control.txt

Access the webserver running on the Zedboard using a browser pointing at the Zedboard's IP address (192.168.2.87). Select Peek & Poke from the menu bar.

Browse for the zedboard_video_tpg_hdmi_720p_60hz.txt configuration file and open it. Simply click on Poke All to change the current video output from 1080p @ 60Hz to 720p @ 60Hz. Missing Image!

Right click on Peek & Poke from the menu bar and select Open Link in New Tab. Browse for the zedboard_video_tpg_hdmi_control.txt configuration file and open it. Simply click on Poke All to configure both of the two TPG's (different setup).

The default configuration setup is as follows.

Test Pattern Generator 1

Set Background Pattern to Vertical Ramp
Set Box Colour to green, Box Size to 125 & Motion Speed to 5
Set Foreground Pattern to Moving Box
Start the TPG with auto-restart (continuous frames)

Test Pattern Generator 2

Set Background Pattern to Pass through
Set Foreground Pattern to Cross hairs
Start the TPG with auto-restart (continuous frames)
Enable video input

Note: The cross hairs are not dead centre (expected), this is due to their coordinates being set for 1080p but the current resolution is 720p.

Use the zedboard_video_tpg_hdmi_1080p_60hz.txt and zedboard_video_tpg_hdmi_1080p_30hz.txt for different screen resolutions and frame rates.

Below is a useful RGB / YUV colour space converter to help ease with any conversion calculations.

Colour Space Converter
Red :			Y :
Green :			U :
Blue :			V :

Introduction

Aims

Part 1 - Setup environment

Part 2 - Firmware Development - 1

Part 3 - Revision Control

Part 4 - Firmware Development - 2

Part 5 - OS Development

Part 6 - Revision Control

Part 7 - Hardware Deployment

Part 8 - Check everything is working as expected

1. Pre-requisites

.bashrc (partial)

2. Create a new firmware project

3. Open block design

4. Add video logic to block design

5. Edit product identification

6. Edit HDL wrapper

7. Edit pin constraints

8. Commit new & updated files

9. Create production release

10. Archive build files for later retrieval

11. Bump version

12. Update hardware platform

13. Enable i2c Tools

14. Create auto-run application

15. Commit new & updated files

16. Create production release

17. Copy files to SD Card

18. OS boot & Firmware load

19. Firmware register setup & TPG operation
